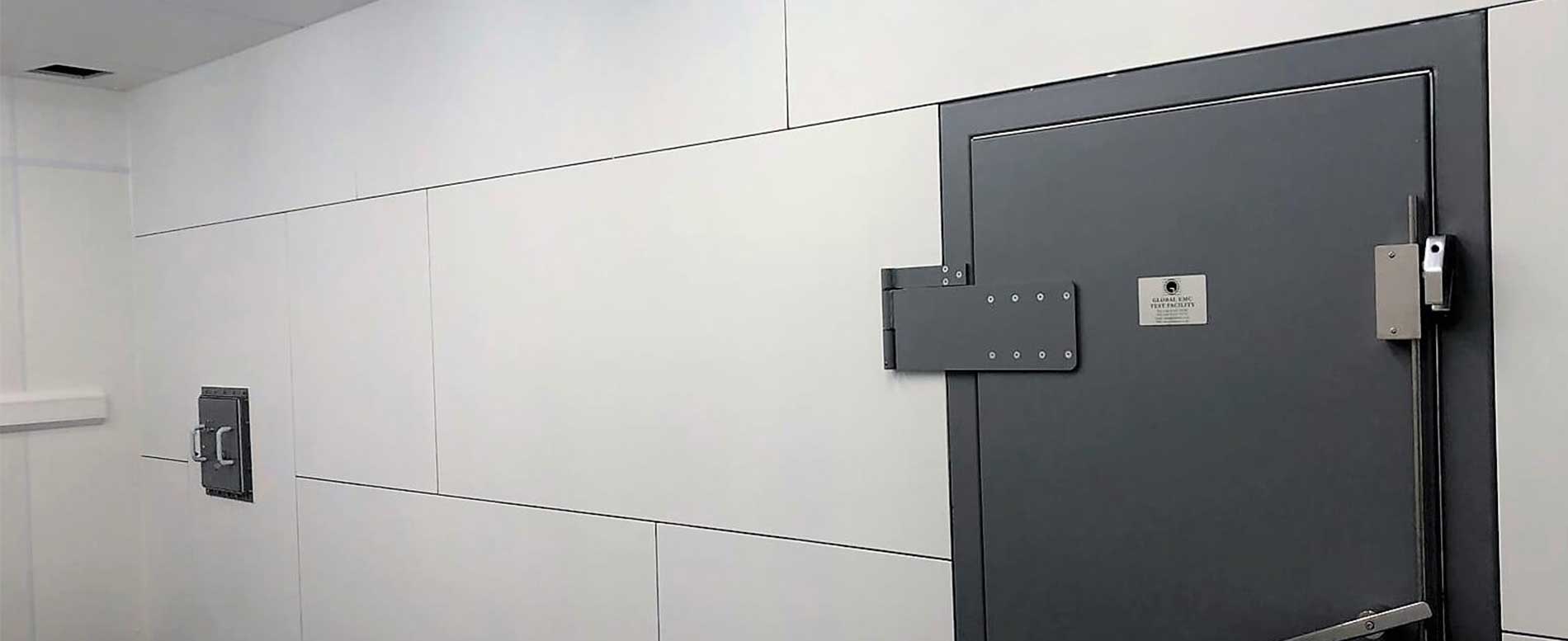

Forensic Shielded Rooms

Global EMC’s Forensic shielded rooms work on the Faraday cage principle of a 6 sided metal enclosure, providing a controlled environment, free from electromagnetic interference (EMI) and ambient RF signals from entering or exiting the room.

This provides a suitable location for the interrogation of electronic devices without the risk of the device achieving Wi-Fi, Bluetooth or 4G/5G connection. Suitable for evidential proceedings and examination rooms each installation is independently tested and certified by a UKAS approved ISO17025 test body.

Contact us for more Information

Choose This Test Chamber For


A turnkey solution is provided by Global EMC to specify, design, manufacture, install and provide final certification and testing of the complete project. High-quality internal finishes are also provided including lighting, power, data and HVAC to make the Forensic shielded rooms durable, practical and comfortable.

Device Interrogation - Forensic Shielded Rooms

Device Interrogation

Examination of electronic devices without the possibility of
Wi-Fi, Bluetooth or 4G/5G connection.

Anti-Spy - Forensic Shielded Rooms

Anti-Spy

Secure speech, TEMPEST, sound dampening and anti-bugging.

Approved - Forensic Shielded Rooms

Approved

Suitable for evidential proceedings and examination rooms with annual calibration and re-certification.

This Product Features


The shielding is an enclosure of all walls, ceiling and flooring using 2mm modular pan steel. This shielded enclosure gives a superb performance. It is a modular assembly of individual steel fabrications that are produced from 2mm galvanized sheet steel.

These are folded at the edges of each panel to form flanges which are bolted together. Double wire mesh gasket is placed between each flange to form a high-performance electromagnetic seal. Rooms are designed with an airlock entry system where the opening of one door will not break the integrity of the shield. Indicator lights are provided to show when a door is opened and closed.

A turnkey solution is provided by Global EMC to specify, design, manufacture, install and provide final certification and testing of the complete project. High-quality internal finishes are also provided including lighting, power, data and HVAC to make the Forensic room durable, practical and comfortable.

Shielding Effectiveness tested to EN 50147-1

Every Global EMC shielded room is provided with a Faraday cage shield. The shielded enclosure provides both an area free from external ambient signals but also can be used for devices inside the room from transmitting outside the shielding. Such as in Forensic investigation rooms

The measure of shielding performance is conventionally known as “shielding effectiveness”. 100dB in plane and microwave frequencies is generally regarded by most standards as a very high level of shielding suitable for scientific use.

Global EMC offer two levels of shielding Standard and Extended Performance. Standard performance is suitable for most shielding requirements and is typically seen in commercial testing situations. Extended Performance is usually used in high-performance Military applications along with certain high frequency needs.

Forensic Shielded Rooms

Contact us for more Information
Key Features

Ultra-high shielding performance as standard.

Independent shielding effectiveness test to EN 50147-1.

Standard shield performance of 60dB @ 10 kHz, 100dB @ 300 kHz, 100dB @ 1-10 GHz. 80dB @ 18GHz

Advanced (Optional) shield performance of 80dB @ 10 kHz, 100dB @ 100 kHz - 40 GHz

Designed and manufactured to the highest standards in Great Britain.

Industry-leading low maintenance shielded door with copper-beryllium knife-edge seals.

Bespoke solution upon request. Test facility can be configured to your exact requirements.

Air lock door system including indicator lights.

Filters for internal power and lighting.

Fibre optic or dimmable LED lighting.

Soundproofing as an option.

Internal finish to floor, ceiling and walls to customer requirements.

Soundproofing as an option.

Applications
Evidence rooms, Examination rooms.
Quiet rooms for phone and other communication device interrogation.
Military applications, Police Applications
