Forensic Evidence Box (FEB)

Global EMC’s Forensic Evidence Box works on the Faraday cage principle of a 6 sided metal enclosure, providing a controlled environment, free from electromagnetic interference (EMI) and ambient RF signals from entering or exiting the Box

This provides a suitable location for the isolation of electronic devices without the risk of the device achieving Wi-Fi, Bluetooth or 4G/5G connection. Each Forensic Evidence Box is independently tested and certified and calibrated on the finished product, guaranteeing performance.

The Small Box Fixing A Big Problem

Global EMC have developed the latest generation in Evidence Shielding to tackle a clear and obvious need. Below are some of the highlights of the Forensic Evidence Box.

Conponent Testing For Electromagnetic Energy - Global EMC

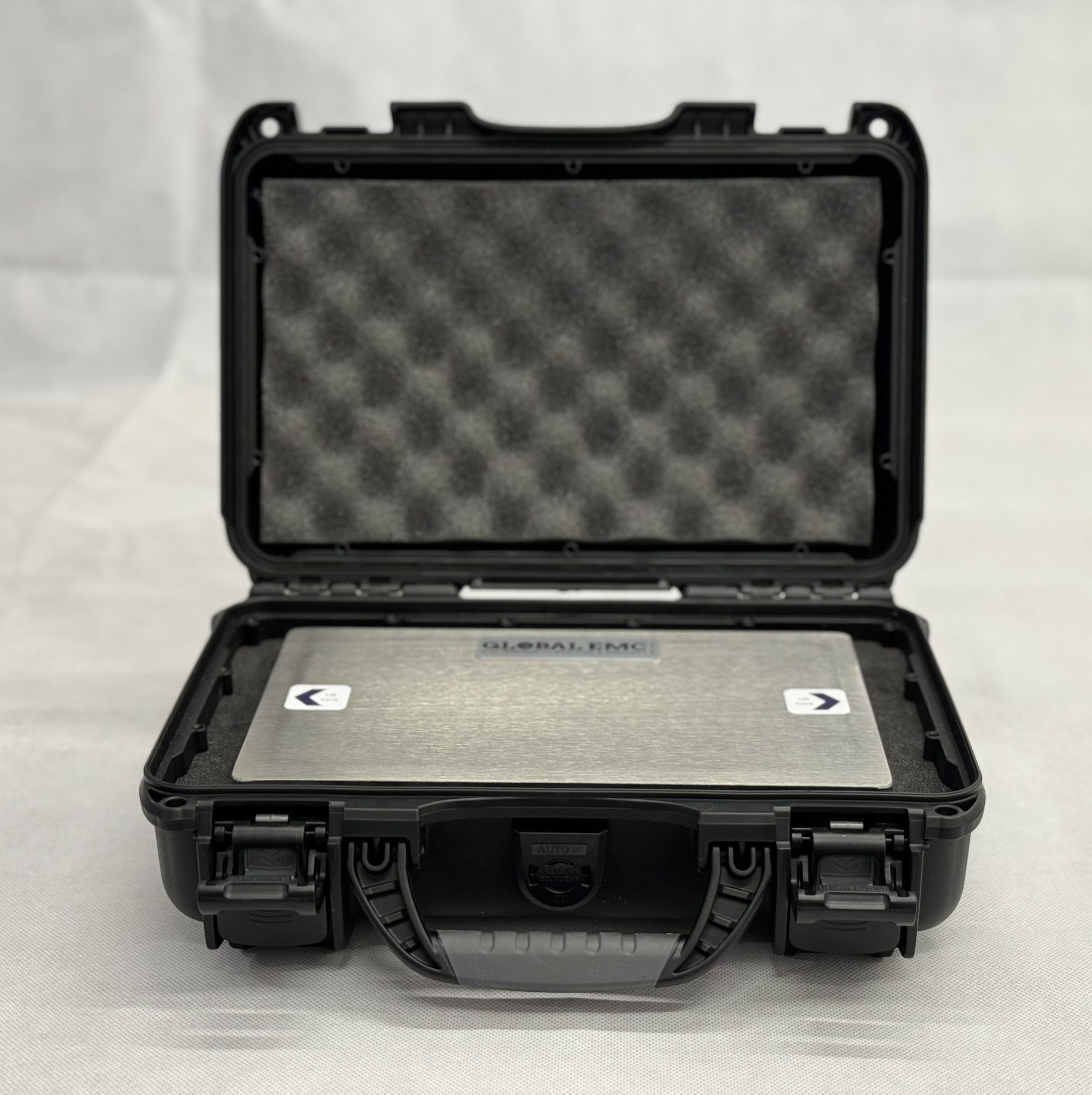

The secure carry case enables the FEB to be fully portable (more information below).

Enabling the end user to have their shielding solution in place and ready to go, lowering the risk of data loss or interference.

Unparalleled Protection

Protects from
– File Transfer
– Wipe Commands
– Message Receipt
– GPS Tracking
– Bluetooth
– Wi-Fi
– Cellular Data/Signals

Transmission Electron Microscopy Shielding - Global EMC


The FEB relies on passive, rather than active shielding. The protection will never go out of date and does not require any power source. Active shielding devices rely on power sources to block incoming signals in certain frequency bands. As technology moves to higher frequencies, active
protection may no longer cover the threat.

Magnetic Field Shielding - Global EMC


Each FEB is tested using the principles of EN50147-1 and certified.

Forensic Evidence Box

Forensic Evidence Box

Interior Dimensions:
L291mm x W178mm xH93mm

Exterior Dimensions:
L321mm x W229mm x H111mm

Weight: 0.98kg

Lid Depth: 33mm

Base Depth: 60mm

Max Buoyancy: 2.0 kg

Temperature Range: Min -20°F (-29°C ) Max 140°F (60°C)

Airline cab carry on: Yes

Watertight: Yes-IP67

Warranty (on case): Conditional Lifetime Guarantee

IPX7 Ingress Protection - Waterproof

IP6X Ingress Protection - Dustproof

ATA Specification 300 - Category 1 Impact

ASTM D-4169 DC-18 - Drop Test

ASTM D-4169 DC-18 - Vibration

ASTM D-4169 DC-18 - Rainfall

MIL-STD0810F - Immersion
