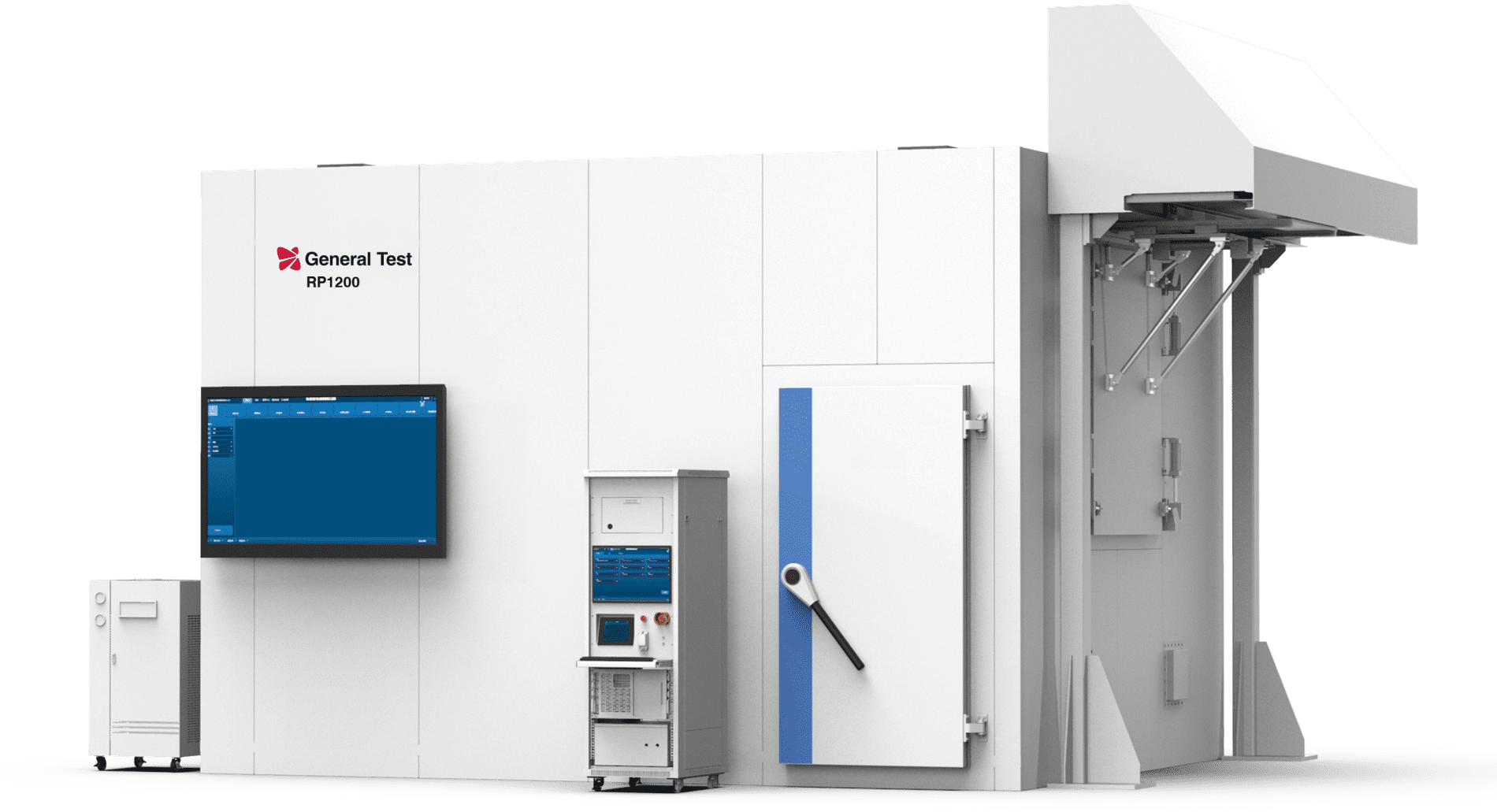

RP1200
Fields of application: millimetre wave satellites, phased array antennas, millimetre wave radars, millimetre wave base stations, terminals, chip measurement
Product Description
GTS has addressed the bottleneck in the mass-production of phased-array radar by a closed-loop verification process, from the theoretical foundations, system design, and simulation experiments to product testing. The radar phased-array antenna rapid testing system innovatively solves the difficulty in product batch testing, its testing accuracy meets the requirements of formal products. The system obtains certifications issued by the National Defence Metrology Bureau, it is stable and reliable. The system can work 24/7 at customer sites, improve testing efficiency by 3 to 6 fold, save labor costs, and be compatible with automated production lines.
Functional Performance
Test Functions
(1) Passive Test Functions
Antenna 1D/2D/3D gain/phase directional map, directivity, efficiency, cross-polarisation ratio, front-to-back ratio, sub-petal level, zero fill, beamwidth, beam pointing (aiming error), axis ratio, phase centre, etc.
(2) Active test functions
Active gain, G/T, EIRP, RF conformance, protocol conformance.
(3) Phased array antenna calibration
Tight field calibration method, rotation vector method.

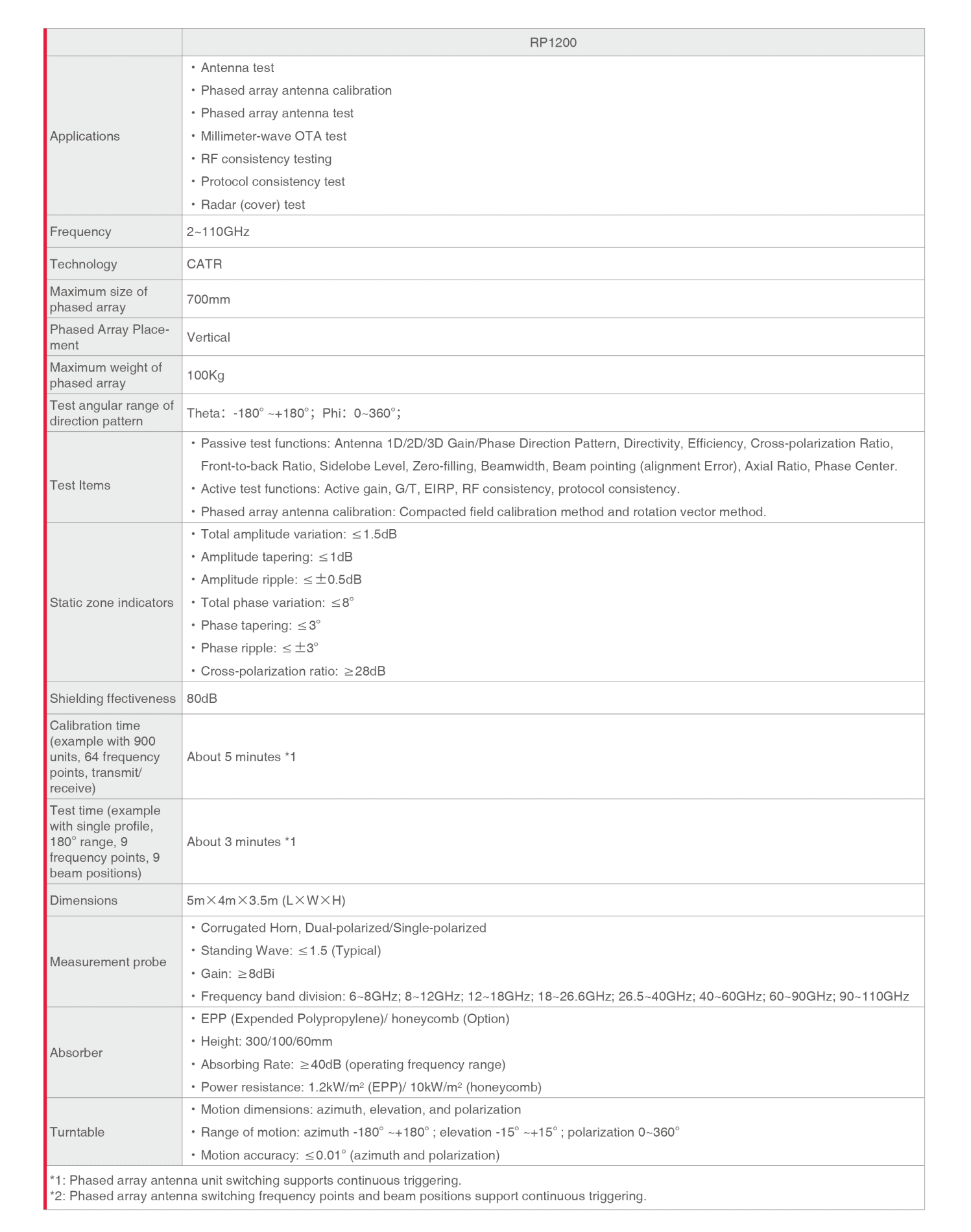

Test Performance
The static zone performance of the RP system is one of the core indicators of the constriction field system. The RP system has the leading international static zone performance, and has the leading international / domestic core technology in system simulation design, feed source, reflective surface, absorbing material, turntable and static zone testing equipment.
The efficiency of the test system stems from a deep understanding of the user’s needs and the part under test, and a continuous improvement in test efficiency on the basis of meeting the customer’s test accuracy requirements, until the perfect balance of efficiency and accuracy is achieved.
Core Technologies
1. Uniform-Phase-center Feed
Compared to traditional corrugated horn feeds, GTS’s CATR horn feeds exhibit excellent wide-angle cross-polarization performance, with phase center deviations on the E-plane and H-plane being less than 5° , and VSWR less than 1.5. In the whole system simulation, the cross-polarization testing accuracy has improved nearly three fold, and the phase testing accuracy has increased by approximately 20%.
Corrugated horn probe with consistent phase centre
Corrugated horn with wide angle phase stability
2. Low Edge Scattering Reflector
Reflective surface for wave absorbing surrounds
3. Low-scattering high-precision Positioner
GTS has expertise in precision electromechanical technology, combined with full-wave system simulation, self-developed absorbing materials, and microsecond-level continuous triggering technology. This combination ensures system mechanical precision while reducing positioner interference to the test zone, The accumulated error of bidirectional tests is zero, doubling the testing efficiency. The dimensions, precision, range of motor travel and load bearing of the positioner are all customizable.
Low scattering high precision rotary tables
4.EPP High Performance Absorbers
The EPP absorbing material is developed, manufactured and tested by GTS. It uses environmentally friendly and durable EPP(Expanded Polypropylene) as base material. Through full-wave simulation and optimization design, it ensures the overall absorbing performance of the absorbers. The absorption rate testing technology with ultra-wideband, multi-angle incidence guarantees the excellent quality of each piece of absorber. Its flame resistance meets UL94 HF-1 standards, with internationally leading absorption performance. The EPP absorber is dust-free, and moisture-free, it applies
to various environments, such as outdoors, clean room, PIM chamber, OTA chamber, etc.
5.Thermal Testing Module
RP1200 series can be equipped with a thermal-insulation wave-transparent ball mask, enabling high-low temperature shock and cyclic testing from -10~55 ℃. The ball mask is compatible with existing positioners, requiring minimal system upgrades. It can be easily installed and removed without affecting the original testing functionality.
Heat-insulating wave-transparent cover
6. Continuous Triggering Controller
The continuous triggering controller utilizes microsecond-level real-time continuous triggering technology, synchronizing the complex states and timing of the positioner, phase-array antenna, RF links, instruments and software. This enables rapid testing
for multiple frequencies, multiple channels and multiple beams.
7.Automatic Loading and Unloading DUT
The robotic arm system, quick-mount fixture, and quick-connectors facilitate the automatic loading and unloading of devices, enhancing overall efficiency and fault tolerance of product testing, while reducing labor costs.
8.Comprehensive assurance for phased-array antenna testing
During the development phase of phased-array antennas, special requirements such as power supply, water cooling and beam control are often necessary. GTS has extensive experience in the field of phased-array antenna testing, we can customize comprehensive and reliable solutions for power supply, water cooling, and beam control according to customer requirements.

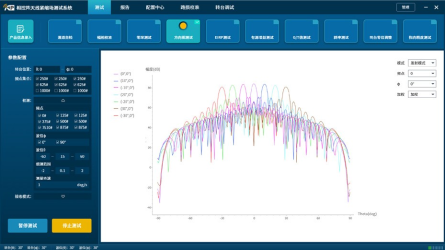

9. Full functional testing control software with high intelligence
GTS has a professional software platform that provides users with a seamless testing experience. The phased-array antenna testing software supports various instruments and DUTs. It integrates broad functions such as calibration, PROM programming, validation, testing, recording, analysis data upload etc. The software has an open interface and can facilitate one-click testing, significantly enhancing the efficiency and
user experience of existing testing processes.
