Production Line Test Series
Wireless terminal production one-stop RF OTA test system
Features
Ten years of technical achievements, operation and maintenance are guaranteed, and technology is more assured
Product Description
PinProbe® M1 is a one-stop (Turnkey) solution for OTA testing of production lines, which solves the problems of long introduction time, low test efficiency and high false detection rate of traditional test equipment through GTS’s self-developed radiation aperture near-field plane scanning technology. Seamless line changeover, new product introduction time shortened by 90%, efficiency increased by 3-6 times, and test accuracy up to 99.9%. Fully automated production is supported, with components selected according to requirements.

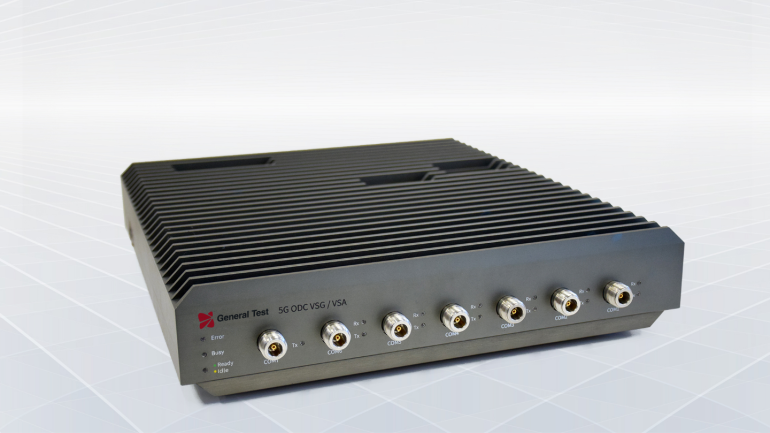

ODC parallel testing
The high-precision test board independently developed by GTS can support multiple parallel RF test channels, and the test efficiency is significantly improved.

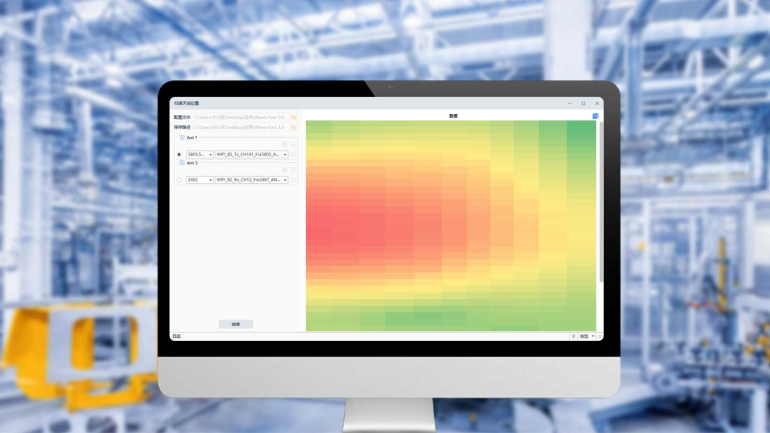

Wavex® Fast
Support automatic introduction of new products, antenna debugging, open architecture, easy expansion and integration, support CPK, yield statistics
Advantage
The test results were well correlated with large anechoic TRP. Automatic search of antenna position, no manual debugging, cost-effective
The automatic introduction of new products eliminates the need for manual debugging, saving engineers at least 2 weeks of debugging time.
The test of the radiation aperture near-field plane scanning principle are consistent with the TRP trend of the standard large anechoic chamber, and the test and leading testing technology escort the quality of this user’s products.
Includes high-precision test board ODC, no external instrument required. Multi-standard one-stop test, the traditional solution requires at least two stations of testing, and the station process is greatly optimised.
Specification
PinProbe® M1 supports the frequency band 0.6GHz~6GHz, which can be used to test 2/3/4/5G, Wi-Fi, BT, GPS and other standards.
| Shielding box parameters | |
|---|---|
| external dimension (LxWxH) | 695x695x800 (H:1245mm cabinet included) |
| degree of shielding | >70dB |
| operating frequency | 0.6~6GHz |
| ODC200 parameters | |
| operating frequency | 0.3~6GHz |
| size (mm) | 380x350x68x |
| Rx power dynamic range | -75~10dBm |
| Tx power dynamic range | -90~5dBm |
| waveform | CW/GSM/WCDMA/LTE/5G NR/WiFi/BT/GPS |
| bandwidth | max 200MHz |
