ForensicShielded Rooms


Global EMC’s Forensic room works on the Faraday cage principle of a 6 sided metal enclosure, providing a controlled environment, free from electromagnetic interference (EMI) and ambient RF signals from entering or exiting the room.

This provides a suitable location for the interrogation of electronic devices without the risk of the device achieving Wi-Fi, Bluetooth or 4G/5G connection. Suitable for evidential proceedings and examination rooms each installation is independently tested and certified by a UKAS approved ISO17025 test body.

Learn More
Forensic Shielded Room - Global EMC

Choose This Test Chamber For


A turnkey solution is provided by Global EMC to specify, design, manufacture, install and provide final certification and testing of the complete project. High-quality internal finishes are also provided including lighting, power, data and HVAC to make the Forensic room durable, practical and comfortable.

Device Interrogation - Global EMC

Device Interrogation

Examination of electronic devices without the possibility of Wi-Fi, Bluetooth or 4G/5G connection.

Anti-Spy - Global EMC

Anti-Spy

Secure speech, TEMPEST, sound dampening and anti-bugging.

Approved - Global EMC

Approved

Suitable for evidential proceedings and examination rooms with annual calibration and re-certification.

This Product Features

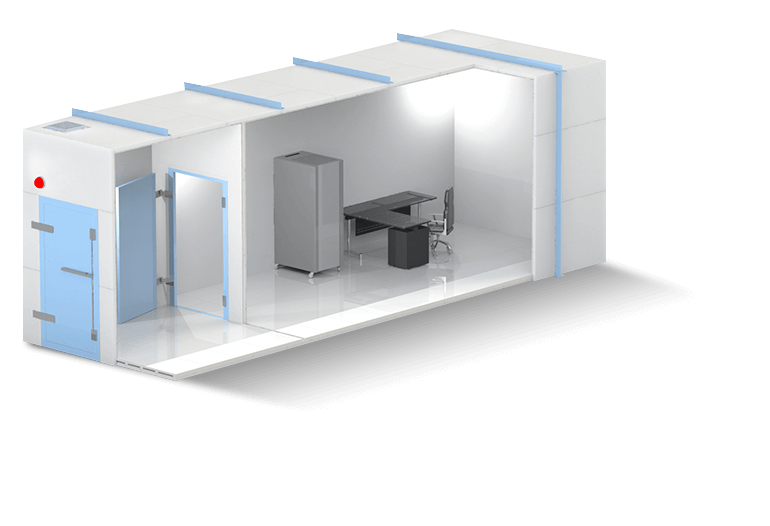

The shielding is an enclosure of all walls, ceiling and flooring using 2mm modular pan steel. This shielded enclosure gives a superb performance. It is a modular assembly of individual steel fabrications that are produced from 2mm galvanized sheet steel.

These are folded at the edges of each panel to form flanges which are bolted together. Double wire mesh gasket is placed between each flange to form a high-performance electromagnetic seal. Rooms are designed with an airlock entry system where the opening of one door will not break the integrity of the shield. Indicator lights are provided to show when a door is opened and closed.

A turnkey solution is provided by Global EMC to specify, design, manufacture, install and provide final certification and testing of the complete project. High-quality internal finishes are also provided including lighting, power, data and HVAC to make the Forensic room durable, practical and comfortable.

Learn More

01


Ultra-high shielding performance as standard.

02


Independent shielding effectiveness test to EN 50147-1.

03


Standard shield performance of -60dB @ 10 MHz, -100dB @ 200 MHz, -100dB @ 1-18 GHz.

04


Shield performance can be extended to 1 kHz to 86 GHz upon request.

05


Designed and manufactured to the highest standards in Great Britain.

06


Industry-leading low maintenance shielded door with copper-beryllium knife-edge seals.

07


Bespoke solution upon request. Test facility can be configured to your exact requirements.

08


Air lock door system including indicator lights.

09


Filters for internal power and lighting.

10


Fibre optic or dimmable LED lighting.

11


Filters for internal power and lighting.

12


Soundproofing as an option.

13


Internal finish to floor, ceiling and walls to customer requirements.

01


Evidence rooms, Examination rooms.

02


Quiet rooms for phone and other communication device interrogation.

03


Military applications, Police Applications
